Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments

  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
Τόπος καταγωγής Guangdong, Κίνα
Μάρκα LDSK
Αριθμό μοντέλου LDSKL03
Ποσότητα παραγγελίας min 1
Τιμή $4100
Χρόνος παράδοσης 1 εργάσιμες ημέρες
Όροι πληρωμής D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Δυνατότητα προσφοράς 5000pcs το μήνα

Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.

Το WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Σκυϊδάκι: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε 24ωρη online βοήθεια.

x
Λεπτομέρειες
Ζώνη συχνοτήτων ανίχνευσης 300MHz ～ 6GHz Ακτίνα ανίχνευσης 3χλμ (αστικό περιβάλλον)
Χρόνος απόκρισης 5ος Χρόνος αντοχής 3 ~ 4Η
Αποκορύφωμα Συσκευή ανίχνευσης αντιρολυσώσεων 6000MHz, φορητή συσκευή ανίχνευσης αντι -drone
Επισημαίνω

CRPC+ Technology Handheld Drone Detector

,

RID Monitoring UAV Detector

,

Passive Detection Portable Drone Detection Device
Μπορείτε να σημειώσετε τα προϊόντα που χρειάζεστε και να επικοινωνήσετε μαζί μας στον πίνακα μηνυμάτων.
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
3KM Detection Handheld Drone Detection & Positioning System 300MHz–6GHz Full-Band Coverage
Product Description

The Handheld Drone Detection and Positioning Equipment (LDSKL03) uses Cognitive Radio Protocol Cracking+ message-level decoding (CRPC+) technology and RID monitoring and identification technologies to detect, accurately identify, locate, and track low-altitude drones. The system is designed with high integration, compact size, and lightweight, primarily used for portable low-altitude security defense.



Cognitive Radio Protocol Cracking Technology (CRPC 2.0) is the fourth generation of drone defense technology. This technology uses an antenna array to monitor the radio environment within the defense area, continuously collecting radio signals 24 hours a day. The collected signals are transmitted to the signal processing unit, where drone signals are precisely demodulated and cracked. The analyzed drone signals are then sent to the data server via the network, where the data server manages the received drone signals uniformly

Applications include:
  • Event security and public safety
  • Border and perimeter monitoring
  • Airport and restricted area protection
  • Industrial facility security patrols
Product Specifications

Working Principle

Passive detection, does not emit any electromagnetic signals

Detection Bands

900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi；

Sensitivity

≤-100dBm

Detection Distance

0~3km+ (Different exist due to different environments and drone type)

Response Time

≤5s

Detection Quantity

≥10 Drones (Simultaneous)

Number of Drone Trajectories

≥10 Drones (Simultaneous)

Position Accuracy

≤3m (Available for the drones can be decoded)

Drone Library (Geo-Locaation)

DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands

Dynamic Detection Movement Speed

≥60km/h  (Available for the drones can be decoded)

Screen Size

6.0 Inch

Battery Capacity

12000mAh

Endurance

3～4h

External Interface

Type-C, SMA antenna connector (external screw and internal hole)*2, 3.5mm audio output connector*1, SIM card*1

Charging Power

DC9V, 2A

Charging Time

≤3h(0%-100%)

Power Consumption

≤15W

Size

177mm * 89mm * 29.5mm(±2mm)

Weight

≤580g(±0.05kg,without antenna)

≤46g per antenna

Operation Temperature

-20℃ to +50℃

Storage Environment

15～25℃

RH25～65%

IP Level

IP54
Product Images

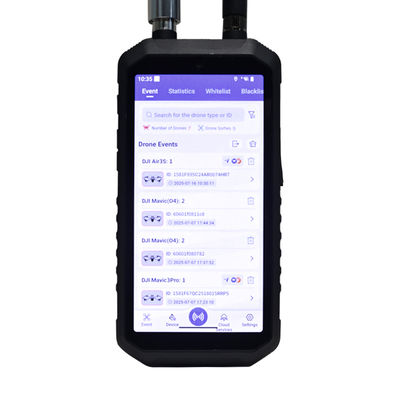

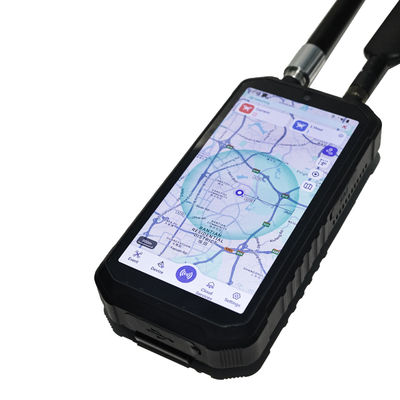

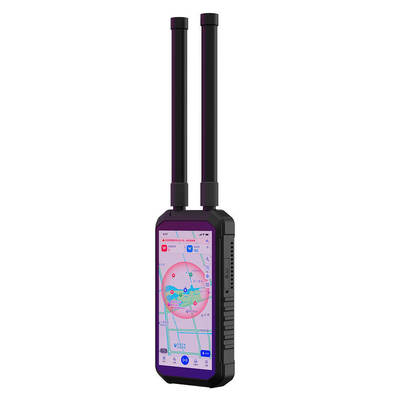

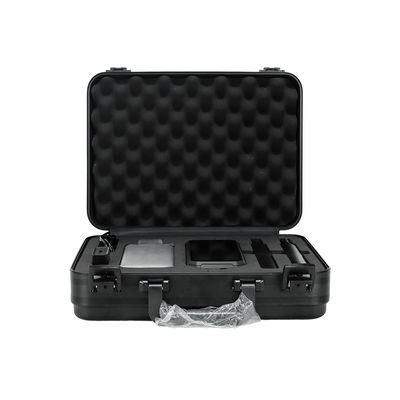

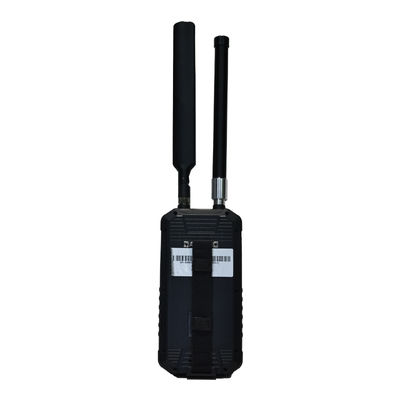

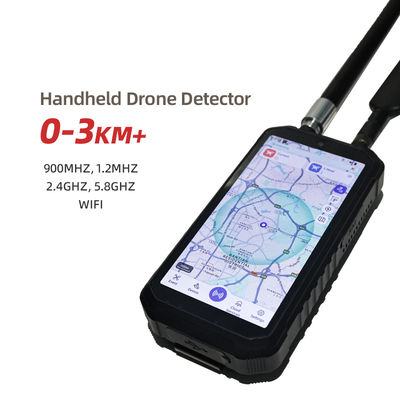

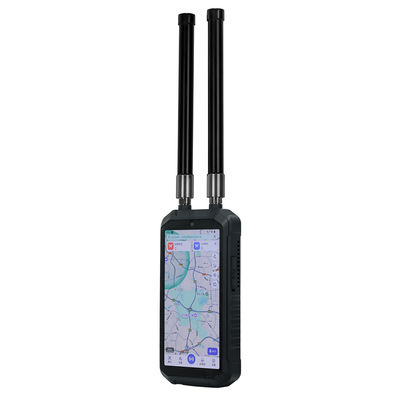

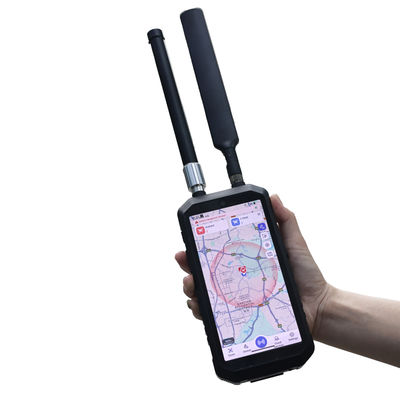

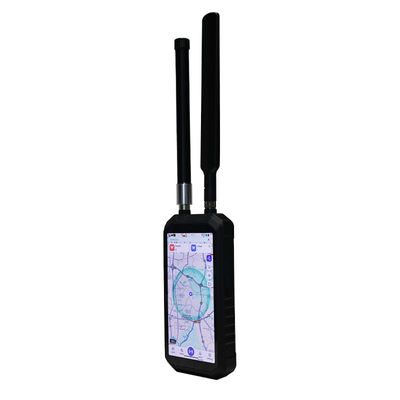

Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments 0
